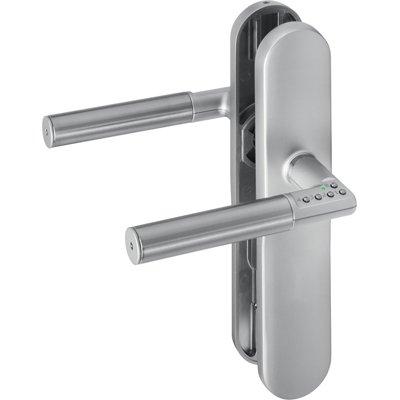

ASSA ABLOY 492L08---11---6 Code Handle® Long escutcheon, without perforation, version A
Technical Specification
Features:
- Make: ASSA ABLOY
- Model code: 492L08---11---6
- Material: Zinc die casting and stainless steel
- Voltage: 2 x 3V batteries
- Dimensions mm: 48 x 254 x 8/12
Additional info:
Easy retrofit to interior doors (8 mm spindle) without wiring Universal usage in door leafs 35 – 80 mm thick Easy to operate, guided by optical and audible signals 1 master/programming code (6-digit code) 9 programming codes (4 to 6 digit code) If a user enters a wrong code five times, the Code Handle® is blocked for 3 minutes Panic function – door can always be opened from the inside Power supply for about 30,000 locking cycles using 2 x 3V batteries Locking can be switched between automatic and manual operation Permanent opening function With integrated handle return spring
Read more| Make | ASSA ABLOY |
|---|---|
| Manufacturer | ASSA ABLOY |
| Category | Access control products >Electronic locking devices |
| Model code | 492L08---11---6 |
| Material: Zinc die casting and stainless steel | |
| Electrical Specifications | Voltage: 2 x 3V batteries |
| Physical Specifications | Dimensions mm: 48 x 254 x 8/12 |
| Additional info |
|
