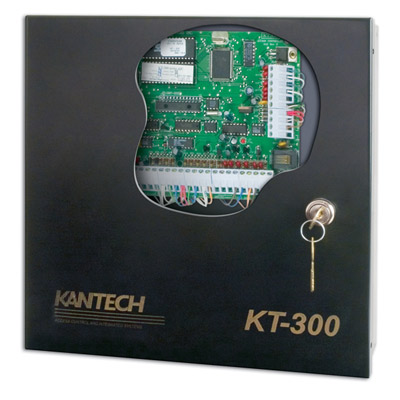

Kantech KT-300PCB128 Access control controller
Technical Specification
Features:
- Make: Kantech
- Model code: KT-300PCB128
- Controller Type: Networkable
- Max No. of Doors per Controller: 2
- No of Cardholders: 8,000
Additional info:
Door controller with 128K memory and accessory kit (includes 1.0K ohm (2), 5.6 ohms (10), 120 ohms (2), PCB standoff, lock hole cover, ground wire and screwdriver). Controls two doors and easily links to a network. Automated trouble reporting. UL294, CE and FCC certified.
Read more| Make | Kantech |
|---|---|
| Manufacturer | Kantech |
| Category | Access control products >Access control controllers |
| Model code | KT-300PCB128 |
| Yes | |
| Electrical Specifications | Voltage: 16 V AC |
| Physical Specifications |
Dimensions mm: 77 x 288 x 299 Weight g: 2.4 kg |
| Environmental Specifications |
Operating Temp oC: 2 ~ 40 Operating Humidity %: 0 ~ 90 |
| Additional info | Door controller with 128K memory and accessory kit (includes 1.0K ohm (2), 5.6 ohms (10), 120 ohms (2), PCB standoff, lock hole cover, ground wire and screwdriver). Controls two doors and easily links to a network. Automated trouble reporting. UL294, CE and FCC certified. |
