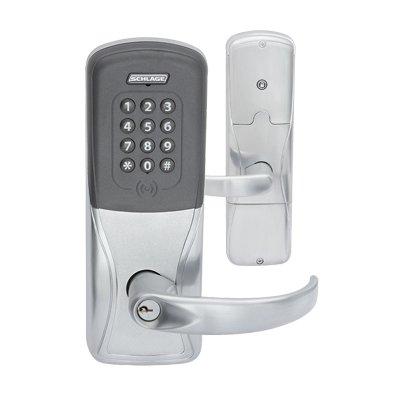

Schlage (Allegion) AD-300 Networked Wired Lock
Technical Specification
- Make: Schlage (Allegion)
- Model code: AD-300
- Lock Type: Electric Locks
- Monitoring Status: Monitored
- Door Type: Interior
The AD-300 is a wired electronic lock designed to be modular and provide more. More options to choose from, more built-in functionality, more credential options, and more compatibility with access control systems. Its patented modular design allows the lock to be customized to fit the needs of an application now and can adapt to meet future technology needs without removing it from the door. The open architecture design allows it to be integrated into over 40 leading physical access control systems through PACS Alliance program. This enables customers to choose the system that best fits their requirements. AD-300 locks securely communicate either directly to an access control panel via RS-485 or, in a Wiegand or Clock & Data system, through a panel interface board (PIB). Available as cylindrical, mortise, mortise deadbolt or exit trim, the AD Series features built-in access control sensors and is compatible with a wide range of credential technologies. The AD-300 can work in the same system as other Schlage wired and wireless access control devices to meet the requirements of any application.
Read more| Make | Schlage (Allegion) |
|---|---|
| Manufacturer | Allegion plc |
| Category | Access control products >Electronic locking devices |
| Model code | AD-300 |
|
Lock Type: Electric Locks Monitoring Status: Monitored Door Type: Interior Backset mm: Standard: 2 3⁄4", Optional: 2 3⁄8", 3 3⁄4", 5" Bolt Throw mm: 1 ⁄2" ~ 3⁄4" |
|
| Environmental Specifications |
Operating Temperature oC: -35 ~ +66 C (-31 ~ +151 F) Operating Humidity %: 0 - 100% non-condensing |
| Electrical Specifications | Voltage: 4 V DC ~ 26 V DC |
| Additional info |
The AD-300 is a wired electronic lock designed to be modular and provide more. More options to choose from, more built-in functionality, more credential options, and more compatibility with access control systems. Its patented modular design allows the lock to be customized to fit the needs of an application now and can adapt to meet future technology needs without removing it from the door. The open architecture design allows it to be integrated into over 40 leading physical access control systems through PACS Alliance program. This enables customers to choose the system that best fits their requirements. AD-300 locks securely communicate either directly to an access control panel via RS-485 or, in a Wiegand or Clock & Data system, through a panel interface board (PIB). Available as cylindrical, mortise, mortise deadbolt or exit trim, the AD Series features built-in access control sensors and is compatible with a wide range of credential technologies. The AD-300 can work in the same system as other Schlage wired and wireless access control devices to meet the requirements of any application. |
